Categories
Minimum Order Quantity: 5-10pcs
Delivery Time: 5-8 working days
Payment Terms: T/T, Paypal,Western Union

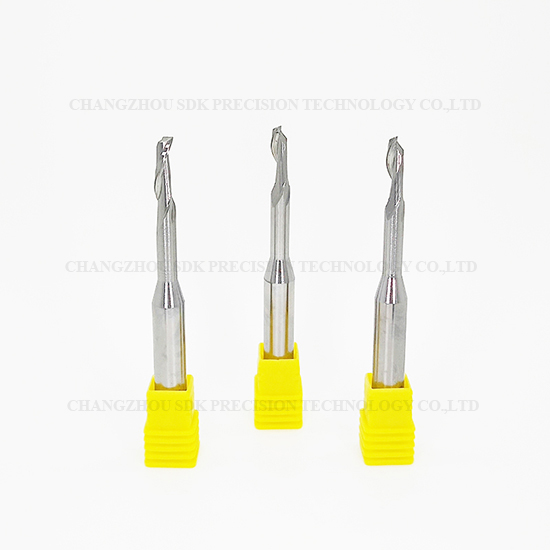

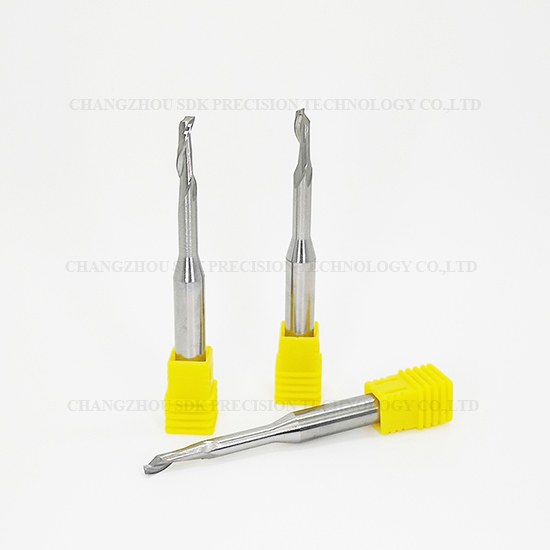

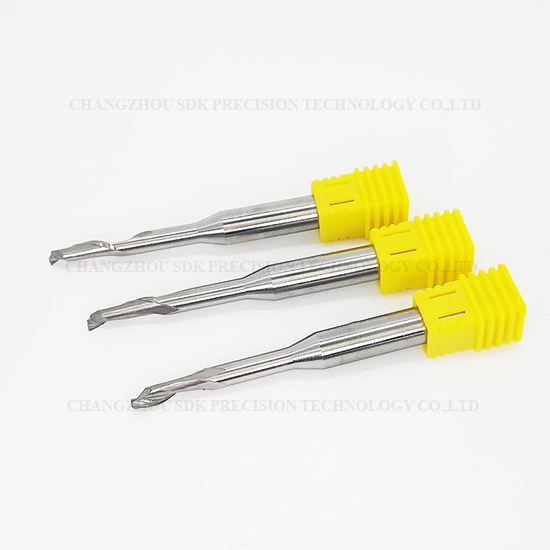

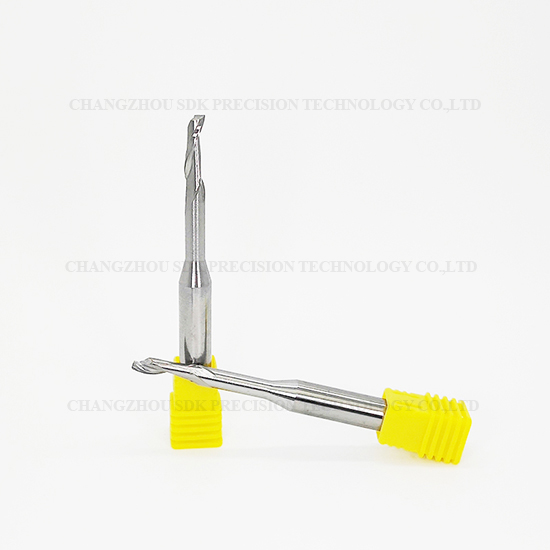

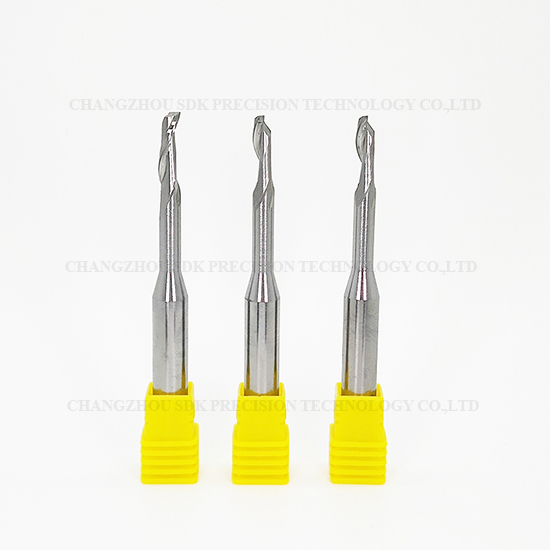

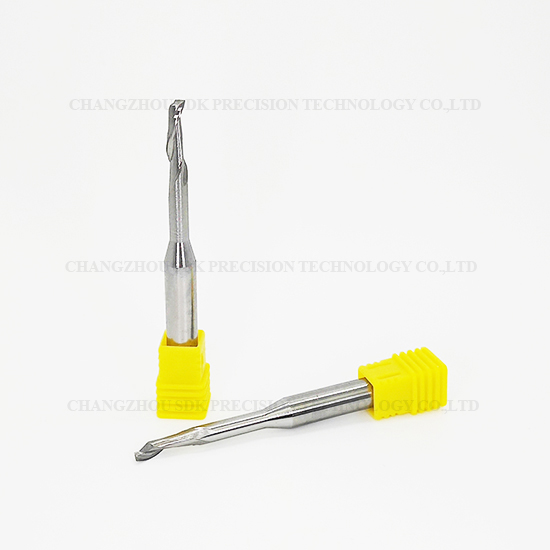

HSS-M42 One Flute Router Bits for Aluminium Doors And Windows
Products Function
Material | HSS-M42 | Machine Type | Milling Machine |
Controlling Mode | CNC Tooling System | Precision | 0.005-0.01mm |
Shank Diameter | 4-40mm | Coating | No coating |
Flute Diameter | 0.3-40mm | Series | 2A Series |
Overall Length | 38-330mm | Suitable For | Aluminium working |
Clients Good Feedback
”We would like to compare yours against others. They work much better than the previous tools we have ever used. The 12mm 3 flute end mill were used for processing aluminum for 600 meters. The lifetime is so long. We will order more.“”
- Adam Gillard, United Kingdom

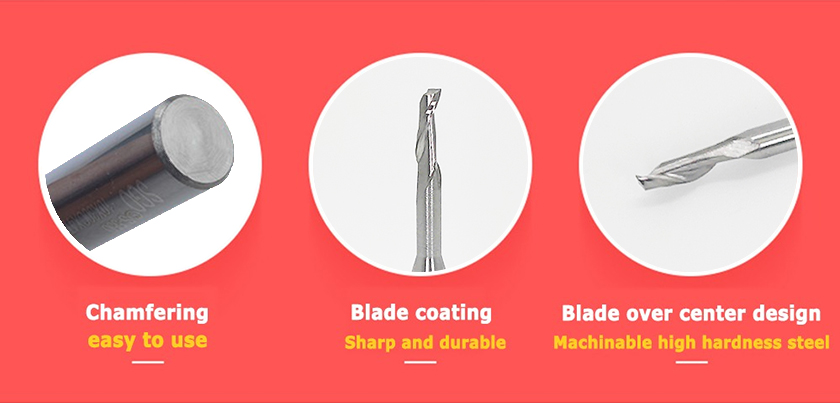

Products Features
The HSS-M42 One Flute Router Bits are specially engineered for precision machining of aluminum doors and windows. Manufactured from high-quality M42 high speed steel, these router bits offer excellent hardness, heat resistance, and wear resistance, ensuring stable performance in continuous cutting operations.
The single flute design provides a larger chip clearance, effectively reducing chip clogging and minimizing aluminum adhesion. This results in smoother cutting, improved surface finish, and extended tool life, making the tools ideal for routing, slotting, trimming, and profiling aluminum frames.
With sharp cutting edges and optimized geometry, HSS-M42 router bits deliver high cutting efficiency and dimensional accuracy, widely used in aluminum door and window fabrication, curtain wall systems, and light metal processing.
Key Features:
Made from premium HSS-M42 material
One flute design for excellent chip evacuation
High resistance to wear and thermal deformation
Smooth cutting and reduced built-up edge
Suitable for CNC routers and milling machines
Applications:
Aluminum doors and windows
Aluminum profiles and frames
Non-ferrous metals
The HSS-M42 One Flute Router Bits for Aluminium Doors and Windows are a reliable choice for manufacturers seeking efficient, durable, and cost-effective aluminum cutting tools.
Specitications
| Item No. | Flute Diameter (mm) | Flute length (mm) | Shank Diameter (mm) | Overall length (mm) |
| SDKM42-ADW-03012 | 3 | 12 | 8 | 60 |
| SDKM42-ADW-04014 | 4 | 14 | 8 | 60 |
| SDKM42-ADW-05014 | 5 | 14 | 8 | 60 |
| SDKM42-ADW-06014 | 6 | 14 | 8 | 60 |
| SDKM42-ADW-07014 | 7 | 14 | 8 | 60 |
| SDKM42-ADW-04014L | 4 | 14(35) | 8 | 80 |
| SDKM42-ADW-05014L | 5 | 14(35) | 8 | 80 |
| SDKM42-ADW-06014L | 6 | 14(35) | 8 | 80 |
| SDKM42-ADW-07014L | 7 | 14(35) | 8 | 80 |
| SDKM42-ADW-08014 | 8 | 14 | 8 | 80 |
| SDKM42-ADW-08020 | 8 | 20 | 8 | 80 |
| SDKM42-ADW-05016 | 5 | 16(45) | 8 | 100(90) |
| SDKM42-ADW-06016 | 6 | 16(45) | 8 | 100(90) |
| SDKM42-ADW-08016 | 8 | 16 | 8 | 100 |
| SDKM42-ADW-08030 | 8 | 30 | 8 | 100 |
| SDKM42-ADW-08030L | 8 | 30(70) | 8 | 100 |
| SDKM42-ADW-08030XL | 8 | 30 | 8 | 120 |
| SDKM42-ADW-08014L | 8 | 14 | 10 | 80 |
| SDKM42-ADW-10014 | 10 | 14 | 10 | 80 |
| SDKM42-ADW-10030 | 10 | 30 | 10 | 100 |
| SDKM42-ADW-10030L | 10 | 30 | 10 | 120 |
| SDKM42-ADW-12016 | 12 | 16 | 12 | 80 |
| SDKM42-ADW-12030 | 12 | 30 | 12 | 100 |
| SDKM42-ADW-12030L | 12 | 30 | 12 | 120 |
Show Details
Factory
Promotion Policy:
1. Free sample:Free sample can be provided, if clients agree to pay for shipping cost.
2. First order coupon: New clients can enjoy USD50 discount coupon for first order, if the total order amount is more than USD500.
3. Big order discount: Clients can enjoy 2%~5% discount, if the total order amount is more than USD5000.
Quality compare for end mill:
Clients Benefits:
1. More revenue: due to our big stocks, tools cost can be controlled. With our competitive price, we can help you to make even more revenue but with lower cost.
2. No quality complain: By control quality from raw material to production process and 100% examed before shipment, so we can help you to keep away from any clients complain for quality issue.
3. One stop shop service: we have variety of cnc milling tools, cnc router bits and cnc drilling tools. You do not need to buy everywhere and pay shipping cost everywhere.
4. Increase clients conversion rate: with our technical and market experience, we can help you to generate more customer with even higher conversion rate.
5. Fast feedback: we offer 24 hours online service, any questions from you or your clients will be replied immediately, your clients will be happy, then you will be happy.
6. Cutomized tools: Customized tools can be provided acccording to your drawing and your work piece.
FAQ
1.Delivery Time: 5-10 Working days
2.Payment Terms:T/T, Paypal, Western Union, AliExpress.
3.Shipping Terms: DHL. FEDEX, UPS, TNT, EMS.etc. according to your demand.
4.Main Markets: Germany,Italy, France,Spain, Russia, Australia, Brazil, Canada,USA, Mexico, Czech, Poland, Turkey and so on.
High Quality with Reasonable Price. Welcome send inquiry to us.
Inquire Now
