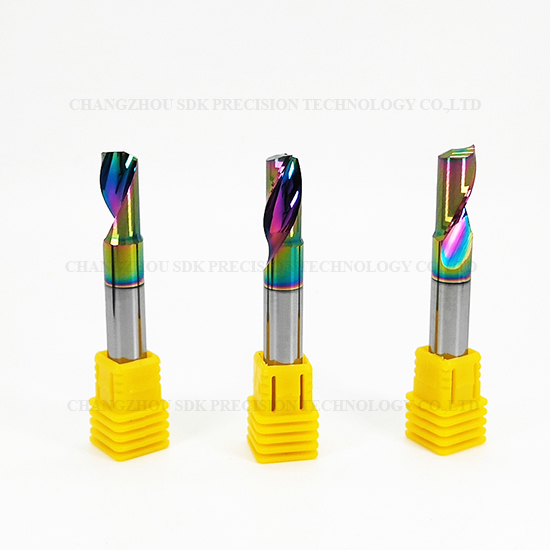

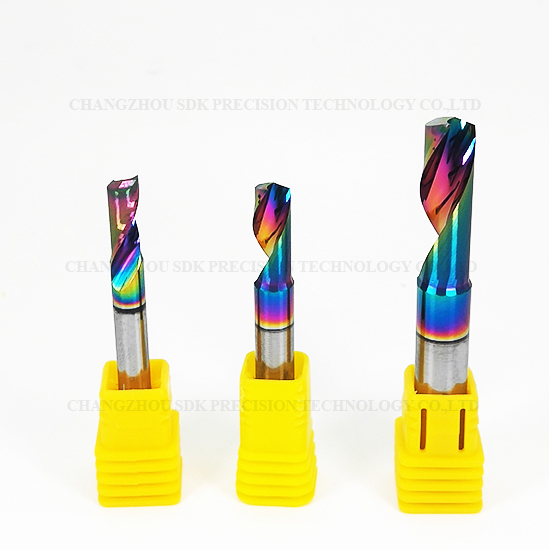

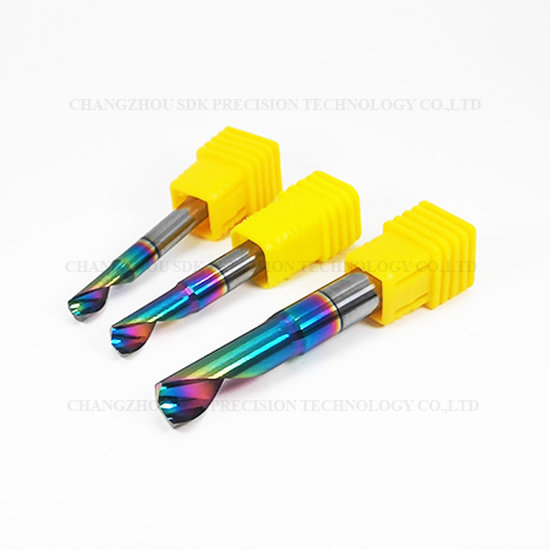

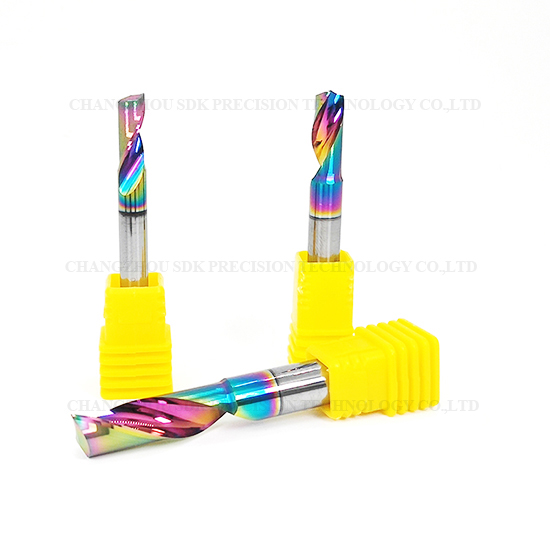

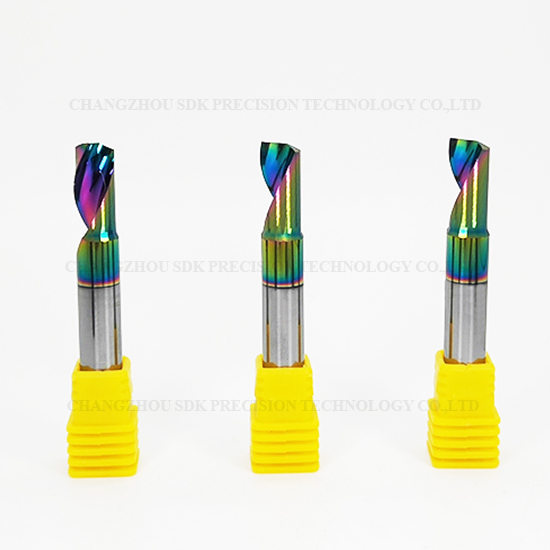

Carbide 1 Flute DLC Coated End Mills For Aluminium (2A Series)
Products Function
Material | Tungsten Cobalt Alloy, Tungsten Carbide | Machine Type | Milling Machine |
Controlling Mode | CNC Tooling System | Precision | 0.005-0.01mm |
Shank Diameter | 4-40mm | Coating | No coating |
Flute Diameter | 0.3-40mm | Series | 2A Series |
Overall Length | 38-330mm | Suitable For | Aluminium working |
Clients Good Feedback
”We would like to compare yours against others. They work much better than the previous tools we have ever used. The 12mm 3 flute end mill were used for processing aluminum for 600 meters. The lifetime is so long. We will order more.“”
- Adam Gillard, United Kingdom
Products Features
The 2A Series Carbide 1 Flute DLC Coated End Mills are specially designed for high-performance machining of aluminum and non-ferrous metals. Made from premium solid carbide and coated with advanced DLC (Diamond-Like Carbon), these end mills deliver excellent wear resistance, reduced friction, and superior chip evacuation.
The single flute geometry provides a large chip space, effectively preventing chip welding and built-up edge during high-speed cutting. This makes the tool ideal for CNC milling of aluminum, aluminum alloys, copper, brass, and plastics, ensuring smooth surface finishes and longer tool life.
With a sharp cutting edge and optimized helix angle, the 2A Series end mills offer stable cutting performance, high efficiency, and precision, especially in slotting, profiling, and contour milling applications.
Key Features:
Solid carbide material for high strength and durability
DLC coating for low friction and anti-adhesion performance
1 flute design for excellent chip evacuation
Suitable for high-speed CNC machining
Long tool life and consistent cutting quality
Applications:
Aluminum and aluminum alloys
Non-ferrous metals
Plastics and soft materials
The 2A Series Carbide 1 Flute DLC Coated End Mills are an ideal choice for manufacturers seeking high-efficiency aluminum cutting tools with reliable performance and extended service life.
Specitications
| Item No. | Flute Diameter (mm) | Flute length (mm) | Shank Diameter (mm) | Overall length (mm) |
| SDK2A-S1AL-01003-C | 1 | 3 | 3.175 | 38 |
| SDK2A-S1AL-01505-C | 1.5 | 5 | 3.175 | 38 |
| SDK2A-S1AL-02004-C | 2 | 4 | 3.175 | 38 |
| SDK2A-S1AL-02006-C | 2 | 6 | 3.175 | 38 |
| SDK2A-S1AL-02008-C | 2 | 8 | 3.175 | 38 |
| SDK2A-S1AL-02012-C | 2 | 12 | 3.175 | 38 |
| SDK2A-S1AL-02504-C | 2.5 | 4 | 3.175 | 38 |
| SDK2A-S1AL-02506-C | 2.5 | 6 | 3.175 | 38 |
| SDK2A-S1AL-02508-C | 2.5 | 8 | 3.175 | 38 |
| SDK2A-S1AL-03106-C | 3.175 | 6 | 3.175 | 38 |
| SDK2A-S1AL-03107-C | 3.175 | 7 | 3.175 | 38 |
| SDK2A-S1AL-03112-C | 3.175 | 12 | 3.175 | 38 |
| SDK2A-S1AL-03117-C | 3.175 | 17 | 3.175 | 38 |
| SDK2A-S1AL-04008-C | 4 | 8 | 4 | 45 |
| SDK2A-S1AL-04010-C | 4 | 10 | 4 | 45 |
| SDK2A-S1AL-04012-C | 4 | 12 | 4 | 45 |
| SDK2A-S1AL-04015-C | 4 | 15 | 4 | 45 |
| SDK2A-S1AL-04017-C | 4 | 17 | 4 | 45 |
| SDK2A-S1AL-04022-C | 4 | 22 | 4 | 45 |
| SDK2A-S1AL-05012-C | 5 | 12 | 5 | 50 |
| SDK2A-S1AL-05015-C | 5 | 15 | 5 | 50 |
| SDK2A-S1AL-05017-C | 5 | 17 | 5 | 50 |
| SDK2A-S1AL-05022-C | 5 | 22 | 5 | 50 |
| SDK2A-S1AL-06012-C | 6 | 12 | 6 | 50 |
| SDK2A-S1AL-06017-C | 6 | 17 | 6 | 50 |
| SDK2A-S1AL-06022-C | 6 | 22 | 6 | 50 |
| SDK2A-S1AL-08017-C | 8 | 17 | 8 | 60 |
| SDK2A-S1AL-08022-C | 8 | 22 | 8 | 60 |
| SDK2A-S1AL-08025-C | 8 | 25 | 8 | 60 |
| SDK2A-S1AL-10025-C | 10 | 25 | 10 | 60 |
| SDK2A-S1AL-10032-C | 10 | 32 | 10 | 75 |
| SDK2A-S1AL-10042-C | 10 | 42 | 10 | 85 |
| SDK2A-S1AL-12035-C | 12 | 35 | 12 | 75 |
| SDK2A-S1AL-12042-C | 12 | 42 | 12 | 90 |
